STS SENSOREN TRANSMITTER SYSTEME · PRESSURE TRANSMITTERS

STS SMT PT/EL CV Smart Flush Pressure and Vacuum Transmitter

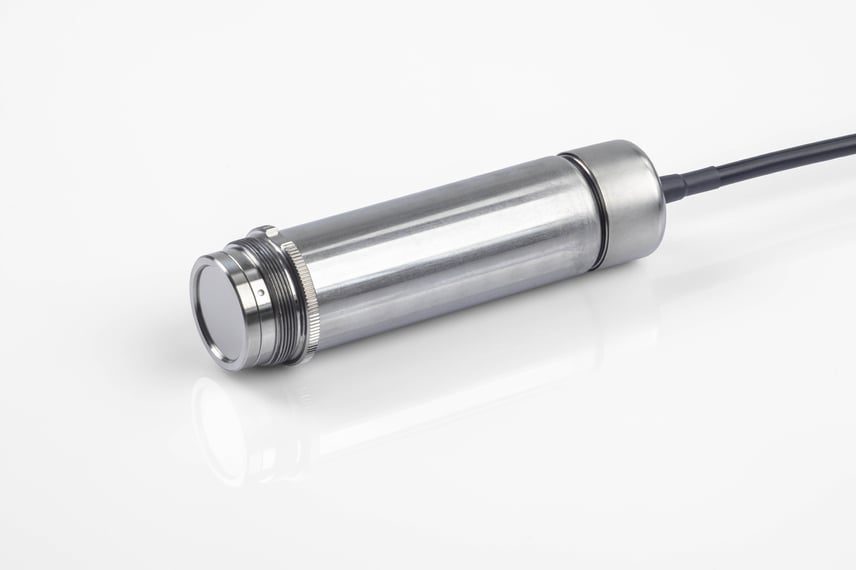

Original STS manufacturer SMT PT/EL CV model illustration — Manufacturer’s product photo is described as a similar illustration, not proof of identical ordered connection.

Smart industrial pressure, vacuum and level transmitter with a 1.5-inch sensing area, optional local display and EMI/RFI protection for corrosive or slurry-related duties.

Manufacturer-published technical specifications

Nominal 5 inH₂O to 300 psig, with 30 inHg vacuum capability; accuracy ≤±0.25% FS; ambient −40 to +80°C; process −40 to +125°C; mA output; tantalum, Hastelloy and ceramic materials as configured.

Official technical reference

SMT PT/EL CV original STS model page and datasheet downloads.

Model selection and hazardous-area approval: Check the current manufacturer datasheet, exact ordered variant, materials and pressure rating. FM/FM-C, ATEX and IECEx certifications are distinct and are not generalized across family products.

SMT PT/EL CV smart flush and vacuum

The process application should determine whether this smart transmitter is configured for pressure, vacuum or hydrostatic level, and the PLC range must use the same reference convention. Check its nominal 1.5-inch flush face, optional display, Hastelloy/tantalum/ceramic process materials and separate ambient versus process temperature ratings. A comparable housing illustration is not proof of the exact electrical or Ex variant.
