LEFOO · PRESSURE TRANSMITTERS

LEFOO LFT700 Monocrystalline Silicon Pressure Transmitter

LEFOO LFT700 Monocrystalline Silicon Pressure Transmitter. Technical family profile based on the original manufacturer’s current model description; options and approvals must be verified against the exact ordered suffix and delivered nameplate.

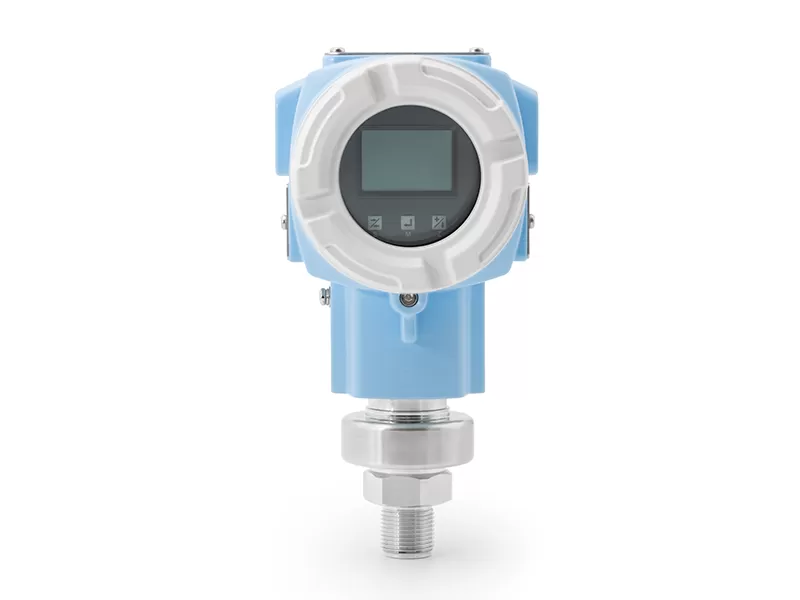

LEFOO LFT700 original manufacturer pressure transmitter display variant
Original LEFOO LFT700 maker photograph of the pictured display version. Representative model-family housing, not proof of exact selected order code or ATEX option.

Manufacturer specifications

Measurement familyMonocrystalline silicon pressure transmitter; selectable nominal sensors 6 kPa, 40 kPa, 250 kPa, 1 MPa, 3 MPa and 10 MPa
Published accuracy±0.075% FS family specification
Outputs4–20 mA, 4–20 mA HART or RS485, 12–36 VDC by variant
Diaphragm316L, Hastelloy C or tantalum option, verify compatibility
EnclosureIP65; maker-listed ambient −20 to +70°C with display
Ex evidenceMaker site lists ExdIICT6 and offers ATEX document; actual issue number, annex and ordered variant have not been independently checked
Photo / Ex approval verification: No independently selected and model-matched original manufacturer image has been attached to this AirAlign page. For hazardous area claims, original ATEX/IECEx certificate numbers and scope must be established for the ordered model. General CE/EMC conformity is not an explosion protection approval. Model-level evidence only; SKU and original image QA open.

LFT700 — HART and RS485 are separate choices

LEFOO’s LFT700 lists monocrystalline MEMS pressure sensing, ±0.075% FS nominal precision and multiple nominal pressure-cell ranges. The maker offers 4–20 mA, 4–20 mA HART and RS485 configurations, so the host must match the ordered electrical version rather than expecting them all concurrently. Record the configured sensor span, 100:1 turndown context and actual process fitting, and verify the Exd IIC T6 claim only against the specific approved order code and certificate.

Original technical sources

LEFOO manufacturer model and technical specification · Maker technical downloads

Model-family evidence cross-checked 23 October 2026. Do not infer all orderable variants, historical product availability, or Ex certification from one product overview.
